D5 Render system requirements for a laptop, and how much space it needs

D5 Render needs Windows 10 (version 1809 or later) and a dedicated, ray-tracing-capable graphics card. D5's own minimum is an NVIDIA GTX 1060 6GB, an AMD Radeon RX 6000-series card or an Intel Arc A3, and it does not run on integrated graphics. So a laptop can run D5 only if it has a dedicated GPU at that level and D5 is set to use it. D5 doesn't publish an installer size, but it recommends a workspace drive with at least 40 GB free. If your laptop falls short, you can run D5 on a remote workstation and stream it to the laptop instead.

D5 Render's official system requirements

These are D5's own figures, from its website, as we read them on 19 October 2026. D5 updates them as new versions ship, so check D5's requirements page before you buy anything.

Operating system     Windows 10 v1809 or above; D5 recommends 21H2 or above
NVIDIA (minimum)     GTX 1060 6GB or above
AMD (minimum)        Radeon RX 6000 XT or above on the requirements page; RX 6400 in D5's help centre
Intel (minimum)      Arc A3 or above
Integrated graphics  Not supported. D5 runs on a discrete GPU only
Graphics API         DirectX 12 with DXR (hardware ray tracing)
Recommended GPU      RTX 2060 or higher (Quick Start guide); RTX 3060 (Ti) (D5's requirements article)
Recommended RAM      32 GB (D5's requirements article)
Free space           At least 40 GB on the workspace drive (D5's rendering-settings guide)
Driver note          With an NVIDIA driver above 531.14, Windows must be 21H2 or above

D5 publishes no minimum for video memory (VRAM), but its pages say VRAM decides how well complex scenes are handled, and D5 says it primarily uses the card's dedicated memory. The minimum gets the program open. Whether your project runs smoothly depends on how much of the card it fills, which our VRAM guide explains.

Can a laptop run D5 Render?

Only one with a dedicated graphics card. D5 states that it supports discrete GPUs, not integrated ones, so a thin laptop with Intel Iris or AMD Radeon integrated graphics alone is below D5's minimum, whatever its processor.

Many laptops have both: an integrated chip for battery life and a dedicated card for heavy work. D5 says a device with two graphics cards will fail its hardware check if it defaults to the integrated one. Its help centre suggests the fix:

1. Set the dedicated GPU as the high-performance default for D5 in Windows' graphics settings (or your laptop maker's graphics switcher).
2. If D5 still picks the wrong card, disable the integrated graphics in Device Manager.
3. Update the graphics driver from the card maker's website, and update Windows at the same time.
4. Restart and run D5 again.

To see what your laptop has, open Task Manager (Ctrl+Shift+Esc), go to Performance, and look for an NVIDIA, AMD Radeon RX or Intel Arc entry with its Dedicated GPU memory. We've written up that check, and what to do with the answer, in can your laptop run D5 Render or Lumion.

Does D5 Render work on AMD graphics?

Yes, on recent Radeon cards. D5 lists the Radeon RX 6000 series and newer (RX 6000 XT on its requirements page, RX 6400 in its help centre) because D5 needs hardware ray tracing through DirectX 12, which older Radeon cards don't have. From D5 3.1, D5's help centre says the AMD driver must be version 20.9.1 or later. A laptop with integrated Radeon graphics only is a different case: that's integrated graphics, which D5 doesn't support.

How big is D5 Render? (size in GB)

D5 doesn't publish the size of the installer on its download or requirements pages (as of 19 October 2026). What it does say is about space to work in. Its rendering-settings guide recommends putting the D5 workspace on a drive with at least 40 GB free, because the local cache grows as you pull models and materials from the asset library. Its Quick Start guide says D5 installs to the C: drive by default, that you can choose another path, and that you should reserve a larger installation space.

In practice that means the program itself is the small part. Plan for the 40 GB, then add room for your own projects. On a laptop with a small, nearly full C: drive, choose a workspace on a larger drive when you install.

D5 Lite, the lighter edition, has its own requirement on the same page: an NVIDIA RTX series GPU and Windows 10 v1909 or later.

D5 download failed: what to check

D5 is installed through the D5 Launcher. D5's download page says to install the launcher and D5 Render together, and that the download link is sent by email and should be opened on your computer. If the download or install fails, these are the usual things to rule out:

• Free space on the drive you chose for the workspace, measured against D5's 40 GB recommendation.
• That you opened the emailed link on the Windows computer you're installing on, not on your phone.
• A firewall, antivirus or office network blocking the launcher's download. Try another network if you can.
• Windows and the graphics driver, both brought up to date. D5's minimum is Windows 10 v1809, and newer NVIDIA drivers need 21H2 or later.
• If it still fails, D5's technical support is linked from its download page.

A download that finishes but won't launch is usually the hardware check, not the download. That points back to the GPU sections above.

If your laptop doesn't meet them: D5 on a cloud RTX 5080

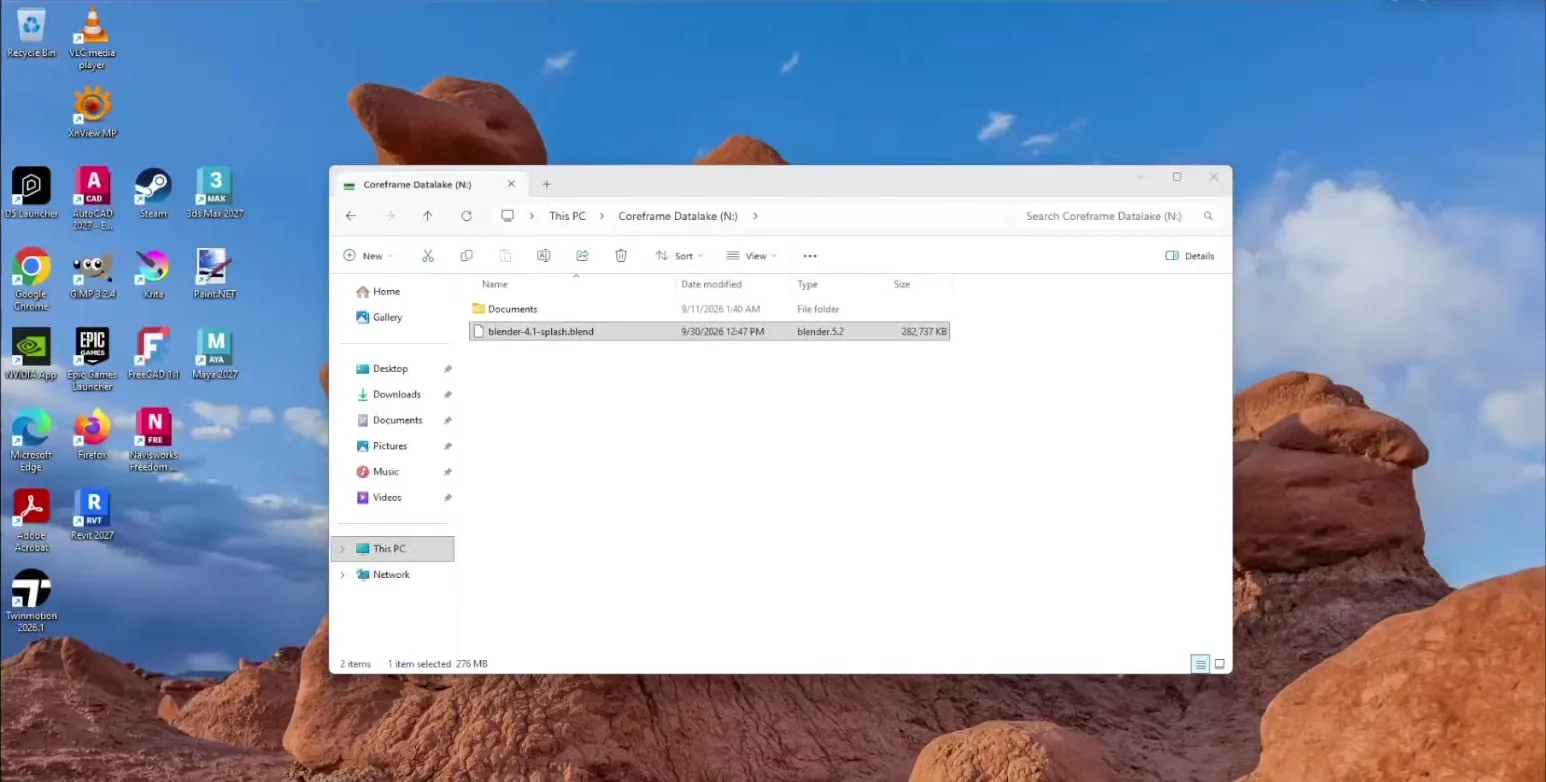

When the laptop is below D5's minimum, or meets it but can't hold your project, the alternative to buying new hardware is to run D5 on a remote workstation and stream it. A Coreframe workstation is a Windows desktop with an RTX 5080 (16 GB GDDR7), 64 GB of RAM and an 8-core, 16-thread high-performance CPU, hosted in Bengaluru, India. That's above the cards D5 lists as recommended, and it has the dedicated GPU D5 checks for, with no integrated chip to pick by mistake.

D5 Render is preinstalled; you sign in with your own D5 account. Your project files live on a drive that persists between sessions, so the 40 GB of workspace and your assets aren't on your laptop at all. You connect from the Coreframe Connect app, which runs on Windows laptops (not Mac yet). 4K at 60 fps looks its best on about 50 Mbps and still holds up at 35. 1080p is comfortable on 20 Mbps.

It costs $5.99/hr, billed per minute while the desktop is streaming, so you pay for the hours you render and nothing in between. More on the setup is on D5 Render on a cloud RTX 5080.
